QUICK COUPLING
-
-
TK-Q형 QUICK COUPLING
노하우와 기술력을 바탕으로 새로운 꿈을 향해 도전합니다. -

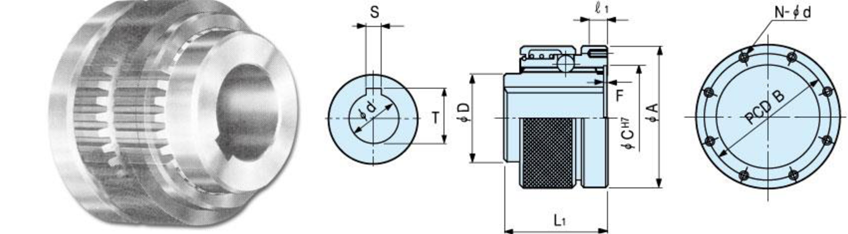

TK-Q형 QUICK COUPLING
-
-
SIZE ΦA P.C.D B ΦC F ΦD Φd L1 S T Dimensions 허용Torque +0.2 -0 ±0.05 H7 ±0.2 -0 ±0.2 H7 ±0.5 JIS N d1 ℓ1 kgf-m 65 65 52 45 2 38 25 50 4 6 10 40 75 75 62 55 2 48 30 50 4 6 10 65 90 90 74.5 68 2.5 62 40 55 4 8 12 100 100 100 84 75 3 68 45 65 6 8 12 160 120 120 101.5 85 3 78 50 75 8 10 15 250 150 150 130 105 4 95 60 100 8 12 15 450 160 160 140 105 4 95 60 100 8 12 15 450 180 180 155.5 125 4 115 75 120 8 14 20 760
-

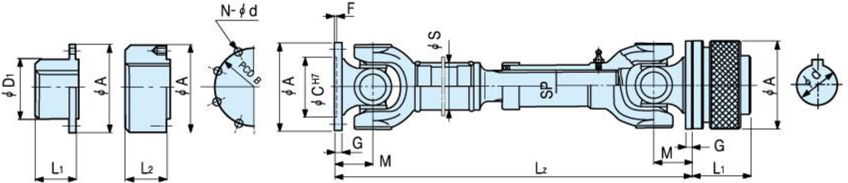

FLANGE 강력형 QUICK JOINT
-
-
FLANGE 강력형 QUICK JOINT 표 SIZE 최대 Torque ß˚ ΦA P.C.D B ΦCH7 F G M SP ΦS 치수 Min Max 운전시 Φd L1 L2 Mb Mz N-d1 LZ D1 신 폭 H7 TK-Q-65 15 25 30˚ 65 52 35 2 4.5 35.5 21 32 4-M 350 40 14 14 25 50 40 TK-Q-75 40 55 30˚ 75 62 42 2 5.5 40 32 45 6 400 50 20 15 30 50 48 TK-Q-90 70 90 25˚ 90 74.5 47 2.5 6 45 39 50.8 4-M 520 55 25 15 35~4 55 55 TK-Q-100 95 125 25˚ 100 84 57 2.5 7 46 39 63.5 6 550 64 30 15 0 65 62 TK-Q-120 150 185 20˚ 120 101.5 75 2.5 8 60 45 76.3 4-M 680 80 35 20 40~4 75 80 TK-Q-150 350 480 20˚ 150 130 90 3 10 80 54 90 8 800 105 40 20 5 100 90 TK-Q-160 350 480 20˚ 160 140 100 4 10 80 54 90 6-M 810 110 40 20 45~5 100 100 TK-Q-180 520 670 22˚ 180 155.5 110 3 12 80 60 101.6 8 850 125 45 25 0 120 125
-
